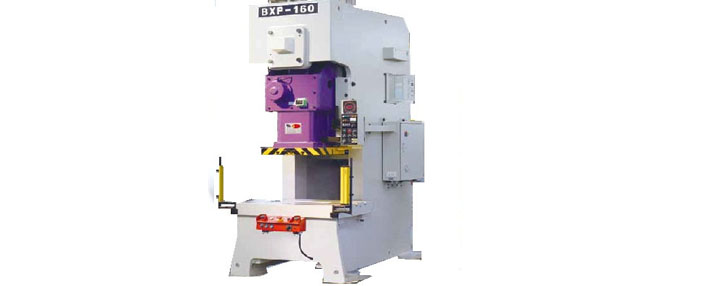

C TYPE PRECISION PRESS BXP-16~260T

A press device is an important workshop tool preferred for handle metal components. Yash Machine Tools is a leader in producing industry friendly workshop equipments in variety of models and with customize d specifications. A C type press machine is designed with C frame and Yash Machine Tools presents C Type Precision Press equipment designed for precise, quick, and easy machining. We provide 11 types of C Type precision press.

Our C type precision press Model number BXP-16 260T is featured with robust structure and the equipment is made of solid steel. This feature gives more strength and durability to this equipment at times of continuous production requirement. Apart from that, this material is corrosion resistant and requires very less maintenance. The sturdy construction leaves no space for noise during operation. It is provisioned with spring operated brake which works along with time adjustment. Find out more information about the eleven different models of we supply and find the most suitable one for your industrial needs. You can get them at the best price from us.

Main Features of a C Type Precision Press:-

Successful synchronization of different motions of equipments.
Reducing the possibilities of dynamic errors during machining. This is one of the best advantages of adding regulators which are generally found in manually controlled equipments.
Maintaining similarity in performance speed.
Monitoring performance in a much hassle free way.
Controlling motions on simultaneous levels
Providing complete command over operations at different stages
Reducing the risks involved in safety concerns
Integrating mechanisms to make it easier for the operator in terms of single touch options
Supporting to reach enhanced operations.
Reducing wastages and damages of materials.
Above all, the cost of operating can be considerably reduced by using this feature.

C Type Precision Press Specification

Machine Type	MODEL		BXP-16		BXP-25		BXP-35		BXP-45
	TYPE		V	H	V	H	V	H	V	H
	Capacity	TON	16		25		35		45
	Rated tonnage point	mm	1.5	1	3.2	1.6	3.2	10.6	3.2	1.6
Stroke Per Minute	Continuous	S.P.M	180-120	200-130	140-60	200-130	120-40	180-110	100-40	150-100
	Intermittent	S.P.M	60		50		40		35
	Stroke Length	mm	60	30	60	30	70	40	80	50
	Die height(S.D.A.U)	mm	200	215	200	215	220	235	250	265
	Slide adjustment	S.P.M	50		50		55		60
	Bolster area(LR×FB)	mm	680×300×70		680×300×70		800×400×70		850×440×80
	Slide area(LR×FB)	mm	300×220		300×220		360×250		400×300
	Shank hole	mm	Ø38		Ø38		Ø38		Ø38
	Hole of bolster plate	mm	260×100		260×130		280×140		300×150
	Main motor	kw×P	2.2×4		3.7×4		3.7×4		3.7×4
	Slide adjustment		Manual		Manual		Manual		Manual
Die Cusion	MODEL		—		—		SA-2.3		SA-2.3
	Capacity	Ton	—		—		2.3		2.3
	Stroke	mm	—		—		50		50
	Pad area	mm	—		—		300×230		300×230
	Air pressure	kg/cm2	6		6		6		6
	Precision		GB(JIS)1		GB(JIS)1		GB(JIS)1		GB(JIS)1
	Machine dimension	L×W×H	1180×800×2000		1280×840×2150		1380×900×2400		1580×950×2450
	Machine Weight	kg	1700		1900		2800		3500

C Type Precision Press Specification

Machine Type	MODEL		BXP-60		BXP-80		BXP-110		BXP-130
	TYPE		V	H	V	H	V	H	V	H
	Capacity	TON	60		80		110		130
	Rated tonnage point	mm	4	2	4	2	6	3	6	3
Stroke Per Minute	Continuous	S.P.M	90-35	120-80	80-35	120-80	60-30	90-60	60-30	90-60
	Intermittent	S.P.M	30		30		25		25
	Stroke Length	mm	120	60	150	70	180	80	180	80
	Die height(S.D.A.U)	mm	310	340	340	280	350	400	350	400
	Slide adjustment	S.P.M	75		80		80		80
	Bolster area(LR×FB)	mm	900×500×80		1000×550×90		1150×600×120		1200×600×130
	Slide area(LR×FB)	mm	500×360		560×420		650×470		670×500
	Shank hole	mm	Ø50		Ø50		Ø50		Ø50
	Hole of bolster plate	mm	320×160		360×180		400×200		400×200
	Main motor	kw×P	5.5×4		5.5×4		11×4		11×4
	Slide adjustment		0.5HP×4P		0.5HP×4P		0.5HP×4P		0.5HP×4P
Die Cusion	MODEL		SA-3.6		SA-3.6		SA-6.3		SA-6.3
	Capacity	Ton	3.6		3.6		6.3		6.3
	Stroke	mm	70		70		80		80
	Pad area	mm	350×300		450×310		500×350		500×350
	Air pressure	kg/cm2	6		6		6		6
	Precision		GB(JIS)1		GB(JIS)1		GB(JIS)1		GB(JIS)1
	Machine dimension	L×W×H	1600×1000×2800		1780×1180×3000		1900×1300×3200		1900×1300×3200
	Machine Weight	kg	5000		6300		9000		11000

C Type Precision Press Specification

Machine Type	MODEL		BXP-160		BXP-200		BXP-260
	TYPE		V	H	V	H	V	H
	Capacity	TON	160		200		260
	Rated tonnage point	mm	6	3	6	3	7	3.5
Stroke Per Minute	Continuous	S.P.M	50-20	70-40	50-20	70-50	40-20	50-40
	Intermittent	S.P.M	20		20		15
	Stroke Length	mm	200	90	200	100	200	100
	Die height(S.D.A.U)	mm	350	400	450	500	450	500
	Slide adjustment	S.P.M	100		110		120
	Bolster area(LR×FB)	mm	1250×800×150		1400×820×170		1500×820×170
	Slide area(LR×FB)	mm	700×550		850×630		950×700
	Shank hole	mm	Ø65		Ø65		Ø65
	Hole of bolster plate	mm	440×220		480×240		480×260
	Main motor	kw×P	11×4		15×4		18.5×4
	Slide adjustment		1HP×4P		1HP×4P		1.5HP×4P
Die Cusion	MODEL		SA-10		SA-14		SA-14
	Capacity	Ton	10		14		14
	Stroke	mm	80		100		100
	Pad area	mm	650×420		710×480		710×480
	Air pressure	kg/cm2	6		6		6
	Precision		GB(JIS)1		GB(JIS)1		GB(JIS)1
	Machine dimension	L×W×H	2350×1400×3700		2650×1700×4100		2800×1880×4500
	Machine Weight	kg	16000		21500		25500

All these 11 types differ in terms of specifications which are provided in accordance with the required machining capacity.

Highlighting Features of Model BXP-16

16 Ton capacity.
680x300x70mm bolsters area (LRxFB).
Provide with 300×200 slide aread.
Ø38mm of shank hole.
Manual slide adjustment
GB (JIS) 1 Precision.

Highlighting Features of Model BXP-25

25 ton capacity.
50 S.P.M slide adjustment possible.
680x300x70mm bolster area.
300×220 slide area.

Highlighting Features of Model BXP-35

35 ton capacity.
55 S.P.M of slide adjustment.
800x400x70mm bolster area.
360x250mm slide area.

Highlighting Features of Model BXP-45

45 ton capacity.
Manual slide adjustment.
SA 2.3 die cusion model.
2.3 die cusion capacity.
50mm die cusion stroke.
300x200mm die cusion pad area.

Highlighting Features of Model BXP-60

60 ton capacity.
bolster plate hole 320x160mm.
5.5×4 kwxP main motor.
0.5HPx4P silde adjustment.
Ø50 shank hole.

Highlighting Features of Model BXP-80

80 ton capacity.
80mm S.P. M slide adjustment.
0.5HP x 4P slide adjustment.
1000 x 550 x 90mm bolster area.

Highlighting Features of Model BXP-110

110 ton capacity.
80 S.P.M slide adjustment.
1150x600x120mm bolster area.
400x200m bolster plate hole.
11×4 kwxP main motor.
Featured with S.A-6.3 die cusion model with 6.3 ton capacity.

Highlighting Features of Model BXP-130

- 130 ton capacity.
- Featured with S.A 6.3 die cusion model with 6.3 ton capacity.
- 80mm strokes from die cusion.
- 400x200mm bolster plate hole.

Highlighting Features of Model BXP-160

160 ton capacity.
120 S.P.M slide adjustment.
1250x800x150mm bolster area.
ø65mm shank hole
Die cusion with 14 ton capacity.

Highlighting Features of Model BXP-200

200 ton capacity.
110 S.P.M Slide adjustments.
1400x820x170mm bolster area.
850×630 slide area.
SA-14 model die cusion provided.
14 ton capacity die cusion.

Highlighting Features of Model BXP-260

260 ton capacity.
120 S.P.M slide adjustment.
SA-14 die cusion model provided.
14 ton capacity die cusion.
100mm die cusion stroke.

Consumers can choose the C type precision press model based on its capacity, slide adjustment, die cusion models and die cusion capacity to obtain maximum efficiency in press mechanism.
