WM SERIES HEAVY DUTY LATHE MACHINE
Yash Machine presents WM series heavy duty lathe machines in 5 models for different capacities with latest engineering technology for fast & safe machining. The whole structure of the machine is made of solid cast iron material. Here, we have provided the following features such as,
- Stress relieved bed and precise spindle structure which helps for flawless performance.
- Gear box is new model and the feed box is provisioned with multiplicity of thread machining positions.
- This lathe shows high speed performance with the help of choosy components like high spindle torque, head stock with mechanical clutch or electromagnetic clutch.
- The whole equipment is designed as per CE certification requirements.
- We have applied electromagnetic clutch which is a CE certified from TUV Rheinland, Germany.
DMTG HEAVY DUTY LATHE MACHINE QUALITIES:-
- They have a modern style and are built to accord with both latest human engineering and CE codes of practice—-making the operator feel safer and more comfortable.
- Solid cast iron structure—–guaranteeing the rigidity of bed, head stock and saddle.
- Stress relieved bed and induction hardened guide ways—provide the imported heavy duty lathe machine with all-round rigidity and longer life.
- New-type gear box and high precision spindle structure—–providing near perfect head stock performance.
- Totally-enclosed feed box making a wide range of thread machining possible.
Heavy Duty Lathe Machine Main Features:-
- High Speed
- Big Spindle Bore
- Hardened and Ground Guideway
- Head Stock with Mechanical Clutch or-Electromagnetic Clutch
- High Spindle Torque
- Automatic Forced Lubrication
- Brand – New Design Exterior
- CE Certificate of TUV Rheinland, Germany- Electromagnetic Clutch
Technical Data of Heavy Duty Lathe
| Tech, Specification | WM 01 / 40S | WM 01 / 50S | WM 01/ 56S | WM 01 / 66S | WM 01/ 76S | ||
| Model No. | CDS6240B | CDS6250B | CDS6256B | CDS6266B | CDS6276B | ||
| Max. Swing Over Bed | 400mm | 500mm | 560mm | 660mm | 760mm | ||
| Max. Swing Over Carriage | 230 | 290mm | 350mm | 440mm | 540mm | ||
| Max Swing over Gap (CDS 62**) | 700mm | 760mm | 780mm | 870mm | 965mm | ||
| Width of gap (CDS 62**) | 250mm | 250mm | 250mm | 250mm | 250mm | ||
| Max. length of workpiece | 1000/1500/2000
/3000 |
1000/1500/2000/ 3000 | 1000/1500/2000
/3000 |
1000/1500/2000
/3000 |
1000/1500/2000
/3000 |
||
| Width of guideway | 394mm | 394mm | 394mm | 394mm | 394mm | ||
| Spindle nose | D 8 | D 8 | D 8 | D 8 | D 8 | ||
| Spindle Speed | 26-2000rpm
(16 steps) |
26-2000rpm
(16 steps) |
26-2000rpm
(16 steps) |
26-2000rpm
(16 steps) |
23-1800rpm
CDS6276B only |
||
| Dia. of spindle bore | 82mm | 82mm | 82mm | 82mm | 82mm | ||
| Taper of spindle bore | 90/1:20 | 90/1:20 | 90/1:20 | 90/1:20 | 90/1:20 | ||
| Longitudinal feed | 0.044-1.48mm/rev | 0.044-1.48mm/rev | 0.044-1.48mm/rev | 0.044-1.48mm/rev | 0.044-1.48mm/rev | ||
| Cross feed | 0.022-0.74mm/rev | 0.022-0.74mm/rev | 0.022-0.74mm/rev | 0.022-0.74mm/rev | 0.022-0.74mm/rev | ||
| Metric thread | 0.35-80 mm (53 or 77) | 0.35-80 mm (53 or 77) | 0.35-80 mm (53 or 77) | 0.35-80 mm (53 or 77) | 0.35-80 mm (53 or 77) | ||
| Whitworth thread | 7/16-80tpi (47) | 7/16-80tpi (47) | 7/16-80tpi (47) | 7/16-80tpi (47) | 7/16-80tpi (47) | ||
| Module thread | 0.2-40mm (45 or 66) | 0.2-40mm (45 or 66) | 0.2-40mm (45 or 66) | 0.2-40mm (45 or 66) | 0.2-40mm (45 or 66) | ||
| Dia. metrical pitch thread | 7/8-160 DP (42) | 7/8-160 DP (42) | 7/8-160 DP (42) | 7/8-160 DP (42) | 7/8-160 DP (42) | ||
| Max. travel of cross slide | 348/348/348/ 355/355mm | 348/348/348/ 355/355mm | 348/348/348/ 355/355mm | 348/348/348/ 355/355mm | 348/348/348/ 355/355mm | ||
| Max. travel of top slide | 150mm | 150mm | 150mm | 150mm | 150mm | ||
| Travel of tailstock quill | 150mm | 150mm | 150mm | 150mm | 150mm | ||
| Diameter of tailstock quill | 75mm | 75mm | 75mm | 75mm | 75mm | ||
| Taper bore of tailstock quill | M5 | M5 | M5 | M5 | M5 | ||
| Main motor power | 10HP(7.5kW)/15HP
(11kW.OPTIONAL) |
10HP(7.5kW)/15HP
(11kW.OPTIONAL) |
10HP(7.5kW)/15HP
(11kW.OPTIONAL) |
10HP(7.5kW)/15HP
(11kW.OPTIONAL) |
10HP
(7.5kW)/15HP (11kW.OPTIONAL) |
||
| Packing
Weight |
1000mm | Wooden case (mm): 2850x1150x1900 | Metal pallet(mm): 2780x1120x1800 | ||||
| N.W. (kgs): 2100/2150/2200 | G.W. (kgs): 2670x2810x2860 | ||||||
| 1500mm | Wooden case (mm): 3350x1150x1900 | Metal pallet(mm): 3280x1120x1800 | |||||
| N.W. (kgs): 2150/2200/2250 | G.W. (kgs): 2950x3000x3050 | ||||||
| 2000mm | Wooden case (mm): 3850x1150x1900 | Metal pallet(mm): 3780x1120x1800 | |||||
| N.W. (kgs): 2260/2310/2360/2600 | G.W. (kgs): 3170x3220x3270x3800 | ||||||
| 3000mm | Wooden case (mm): 4580x1150x1900 | Metal pallet(mm): 4780x1120x1800 | |||||
| N.W. (kgs):3030/3080/3150/2800 | G.W. (kgs): 4010/4060/4110/4250 | ||||||
Heavy Duty Lathe Machine Accessories:-
| Standard Accessories: | Optional Accessories: |
| 3 – Jaw Chuck | 4 – Jaw Chuck |
| Steady rest (not for <1500mm lathe) | Face Plate |
| Follow rest (not for<1500mm lathe) | Drive Plate |
| Full – length splash guard | Foot brake |
| Coolant system | Thread chasing dial |
| Oil gun | Chuck guard |
| Fixed center | Tool post guard |
| Center Sleeve | Quick change tool post |
| Tools | Taper turning attachment |
| Halogen light | Digital readout |
| Larger steady rest | |
| Larger follow rest | |
| Rolling live center | |
| CE electrics |
We have five different models of WM series imported heavy duty lathe machines including the following
WM01/40S-Model No CDS 6240B : This model varies in terms of swing over bed which is 400mm and swing over carriage which is 230mm. The swing over gap is 700mm.
WM01/50S-Model No CDS 6250B : Swing over bed and swing over carriage for this model is 500mm and 290m respectively. The swing over gap is 760mm.
WM01/56S-Model No CDS 6256B : With 560mm of swing over bed and 350mm of swing over carriage this model contains 780mm of swing over gap.
WM01/66S-Model No CDS 6266B : It has 660mm of swing over bed and 440mm of swing over carriage and 870mm of swing over gap.
WM01/76S-Model No CDS 6276B : This model contains the maximum swing over bed capacity which is 760mm and swing over carriage is 540mm. The swing over gap is 965mm.
The models are selected based on the swing over bed, swing over gap and swing over carriage capacities. Apart from standard accessories we, provide plethora of optional accessories for safe working which includes 4-jaw chuck, rolling live center, CE electrics, larger follow rest, taper turning attachments, larger steady rest, etc.

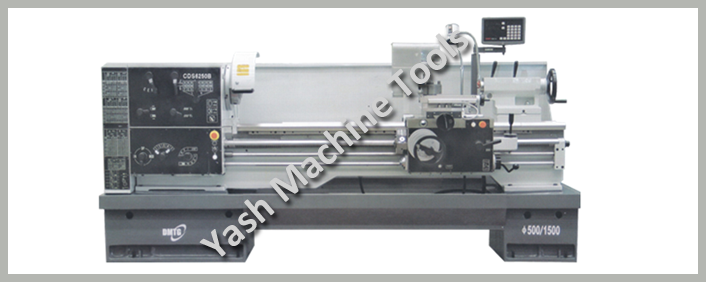

HIGH SPEED LATHE MACHINE – CDS C SERIES DMTG LATHE
Yash Machine Tools five different models of CDS C series DMTG heavy duty lathe machines. Each model is compiled with different machining capacity in terms of variations in swing over bed, swing over carriage and swing over cap capacities
Heavy Duty Lathe Qualities:-
- They have a modern style and are built to accord with both latest human engineering and CE codes of practice—-making the operator feel safer and more comfortable.
- Solid cast iron structure—–guaranteeing the rigidity of bed, head stock and saddle.
- Stress relieved bed and induction hardened guide ways—provide the high speed tool with all-round rigidity and longer life.
- New-type gear box and high precision spindle structure—–providing near perfect head stock performance.
- Totally-enclosed feed box making a wide range of thread machining possible.
Heavy Duty Lathe Machine Main Features:-
- High Speed
- Hardened and Ground Guideways
- Head Stock with Mechanical Clutch or-Electromagnetic Clutch
- High Spindle Torque
- Automatic Forced Lubrication
- Brand – New Design Exterior
- CE Certificate of TUV Rheinland, Germany- Electromagnetic Clutch
Technical Data of Lathe Machine
| Tech, Specification | WM 01 / 40S | WM 01 / 50S | WM 01/ 56S | WM 01 / 66S | WM 01/ 76S | ||
| Model No. | CDS6240C | CDS6250C | CDS6256C | CDS6266C | CDS6276C | ||
| Max. Swing Over Bed | 400mm | 500mm | 560mm | 660mm | 760mm | ||
| Max. Swing Over
Carriage |
230 | 290mm | 350mm | 440mm | 540mm | ||
| Max Swing over Gap
(CDS 62**) |
700mm | 760mm | 780mm | 870mm | 965mm | ||
| Width of gap (CDS 62**) | 250mm | 250mm | 250mm | 250mm | 250mm | ||
| Max. length of workpiece | 1000/1500
/2000/3000 |
1000/1500
/2000/ 3000 |
1000/1500
/2000/3000 |
1000/1500
/2000/3000 |
1000/1500/
2000/3000 |
||
| Width of guideway | 394mm | 394mm | 394mm | 394mm | 394mm | ||
| Spindle nose | D 8 | D 8 | D 8 | D 8 | D 8 | ||
| Spindle Speed | 26-2000rpm
(16 steps) |
26-2000rpm
(16 steps) |
26-2000rpm
(16 steps) |
26-2000rpm
(16 steps) |
23-1800rpm
CDS6276B only |
||
| Dia. of spindle bore | 82mm | 82mm | 82mm | 82mm | 82mm | ||
| Taper of spindle bore | 90/1:20 | 90/1:20 | 90/1:20 | 90/1:20 | 90/1:20 | ||
| Longitudinal feed | 0.044-1. 48mm/rev |
0.044-1. 48mm/rev |
0.044-1. 48mm/rev |
0.044-1. 48mm/rev |
0.044-1.
48mm/rev |
||
| Cross feed | 0.022-0. 74mm/rev |
0.022-0. 74mm/rev |
0.022-0. 74mm/rev |
0.022-0. 74mm/rev |
0.022-0.
74mm/rev |
||
| Metric thread | 0.35-80 mm
(53 or 77) |
0.35-80 mm (53 or 77) |
0.35-80 mm (53 or 77) |
0.35-80 mm (53 or 77) |
0.35-80 mm
(53 or 77) |
||
| Whitworth thread | 7/16-80tpi (47) | 7/16-80tpi (47) | 7/16-80tpi (47) | 7/16-80tpi (47) | 7/16-80tpi (47) | ||
| Module thread | 0.2-40mm
(45 or 66) |
0.2-40mm
(45 or 66) |
0.2-40mm
(45 or 66) |
0.2-40mm
(45 or 66) |
0.2-40mm
(45 or 66) |
||
| Dia. metrical
pitch thread |
7/8-160 DP (42) | 7/8-160 DP (42) | 7/8-160 DP (42) | 7/8-160 DP (42) | 7/8-160 DP (42) | ||
| Max. travel of
cross slide |
348/348/348 / 55/355mm |
348/348 /348/ 355/355mm |
348/348 /348/ 355/355mm |
348/348/348
/ 355/355mm |
348/348/348
/ 355/355mm |
||
| Max. travel of
top slide |
150mm | 150mm | 150mm | 150mm | 150mm | ||
| Travel of
tailstock quill |
150mm | 150mm | 150mm | 150mm | 150mm | ||
| Diameter of
tailstock quill |
75mm | 75mm | 75mm | 75mm | 75mm | ||
| Taper bore of
tailstock quill |
M5 | M5 | M5 | M5 | M5 | ||
| Main motor
power |
10HP(7.5kW)
/15HP(11kW. OPTIONAL) |
10HP(7.5kW)/
15HP (11kW. |
10HP(7.5kW)/
15HP (11kW. OPTIONAL) |
10HP(7.5kW)/
15HP (11kW. OPTIONAL) |
10HP(7.5kW)
/15HP (11kW.O PTIONAL) |
||
| Packing Weight |
1000mm | Wooden case (mm): 2850x1150x1900 |
Metal pallet(mm): 2780x1120x1800 |
||||
| N.W. (kgs): 2100/2150/2200 |
G.W. (kgs): 2670x2810x2860 |
||||||
| 1500mm | Wooden case (mm): 3350x1150x1900 |
Metal pallet(mm): 3280x1120x1800 |
|||||
| N.W. (kgs): 2150/2200/2250 |
G.W. (kgs): 2950x3000x3050 |
||||||
| 2000mm | Wooden case (mm): 3850x1150x1900 |
Metal pallet(mm): 3780x1120x1800 |
|||||
| N.W. (kgs): 2260/2310 /2360/2600 |
G.W. (kgs): 3170x3220x3270x3800 |
||||||
| 3000mm | Wooden case (mm): 4580x1150x1900 |
Metal pallet(mm): 4780x1120x1800 |
|||||
| N.W. (kgs):3030/3080 /3150/2800 |
G.W. (kgs): 4010/4060 /4110/4250 |
||||||
Lathe Machine Accessories:-
| Standard Accessories: | Optional Accessories: |
| 3 – Jaw Chuck | 4 – Jaw Chuck |
| Steady rest (not for <1500mm lathe) | Face Plate |
| Follow rest (not for<1500mm lathe) | Drive Plate |
| Full – length splash guard | Foot brake |
| Coolant system | Thread chasing dial |
| Oil gun | Chuck guard |
| Fixed center | Tool post guard |
| Center Sleeve | Quick change tool post |
| Tools | Taper turning attachment |
| Halogen light | Digital readout |
| Larger steady rest | |
| Larger follow rest | |
| Rolling live center | |
| CE electrics |
WM01/40S-Model No-CDS 6240C : Swing over bed is 400mm and swing over carriage is 230mm. The swing over gap is 700mm.
WM01/50S-Model No-CDS 6250C : For this model the maximum swing over bed is 500mm, swing over carriage is 290mm and swing over gap is 760mm.
WM01/56S-Model No-CDS 6256C : This model contains maximum swing over bed capacity of 560mm and swing over carriage is 350mm and swing over gap maximum capacity is 780mm.
WM01/66S-Model No-CDS6266C : The maximum swing over bed and swing over carriage for this model is 660mm and 440mm respectively. The swing over gap is 870mm.
WM01/76S-Model No-CDS 6276C : This model contains maximum swing over bed, swing over carriage and swing over gap capacity which are 760mm, 540mm and 965mm respectively.
We provide the same standard accessories and optional accessories for all models of heavy duty lathe machines.
Reasons for increased demand for heavy-duty lathe
The heavy-duty lathe is known to perform multiple tasks on metal sheets and provide the most accurate and precise output. Lathe manufacturers offer advanced features which make it useful in being used in heavy industries and mass production. They are perfectly built to run with high speed and run continuously for a longer time. High-duty lathe suppliers cater to specific requirements and ensure the machines are made using high-quality and non-corrosive raw materials. These ultra-modern machines use very few resources to obtain a significantly large output. This makes it favourable for lathe exporters too as it is a powerful tool for high-end machining tasks.
