MILLING CUM DRILLING MACHINE
X6332Z
Milling cum drilling machine is one of the most adaptable workshop equipments preferred to obtain multiple workshop operations like milling, drilling, tapping, etc. Yash Machine Tools presents versatile models created as per industrial standards.
Technical Specifications of Milling Cum Drilling Machine
| Model | X6332Z | XZ6359ZB |
| TABLE :- | ||
| Table size | 1320X320mm | 1120X260mm |
| T slot | 5 no. | 3 no. |
| Size (Width) | 14mm | 14mm |
| Center distance | 63mm | 63mm |
| Max. load of table | 300kg | 250kg |
| Swivel of Table | ||
| MACHINE RANGE :- | ||
| Ttable Longitudinal travel(manual/auto) | 800/750mm | 600mm |
| Table Cross travel (manual/auto) | 300mm | 270mm |
| Table Vertical travel(manual/auto) | 400mm | 380mm |
| MAIN SPINDLE :- | ||
| Spindle Taper | ISO40 | ISO40 |
| Spindle speed /step — Vertical | 90-2000/8rpm | 90-2000/8rpm |
| — Horizontal | 38-1310/12rpm | 38-1310/12rpm |
| Max. drilling dia. | 30mm | 30mm |
| Max. end milling width | 125mm | 125mm |
| Max. vertical milling Dia. | 25mm | 25mm |
| Max. tapping dia. | 10mm(Steel) | 16mm |
| Quill travel | 120mm | 127mm |
| Swivel angle of headstock | ±45º | ±45º |
| Vertical spindle axis to column surface | 200-780mm | 160-660mm |
| Vertical spindle nose to table surface | 180-580mm | 100-430mm |
| Horizontal spindle axis to table surface | 0-350mm | 0-360mm |
| Horizontal spindle axis to arm bottom | 175mm | 175mm |
| Arm travel | 400mm | 500mm |
| FEEDS :- | ||
| Longitudinal/cross feed | 20-360mm/min./8steps | 24-402mm/min./9steps |
| Vertical/step | 422mm/min./1step | 422mm/min./1step |
| Longitudinal/cross rapid speed | 1200mm/min. | 402mm/min. |
| Rapid Traverse vertical | 422mm/min. | 422mm/min. |
| Automatic spindle feed | 0.08/0.15/0.25 | 0.08/0.15/0.25 |
| POWER :- | ||
| Main Motor | 2.2kW | 2.2kW(V/H) |
| (X/Y/Z) feed motor | 0.55kw(X/Y),0.75kw(Z) | 0.37kw(X/Y),0.75kw(Z) |
| Coolant Motor | 0.04kW | 0.04kW |
| OTHERS :- | ||
| Package dimension | 1800X1820X2250mm 1pc/case |
1600X1520X2220mm 1pc/case |
| 2260X1820X2250mm 2pcs/case |
2200X1520X2220mm 2pcs/case |
|
| Overall dimension | 1710x1720x2330mm | 1520X1290X2150mm |
| N/W,G/W | 2000/2200kg | 1350/1500kg |
Model X6332Z is provided with 1320x320mm table size and 5 no T slot. The machining table can load maximum 300kg. It can travel 800/750mm towards longitudinal direction through auto and manual mode. It can be applied to obtain maximum drilling diameter of 30mm, maximum vertical milling diameter of 25mm and tapping diameter is 10mm for steel.
Model XZ6359ZB is featured with 1120x260mm table size. The maximum drilling diameter is 30mm, maximum vertical milling diameter is 25mm and maximum tapping diameter is 16mm. The vertical spindle axis to column surface is 160-660mm and vertical spindle nose to table surface is 100-430mm.
UNIVERSAL MILLING CUM DRILLING MACHINE
XZ6350ZS
XZ6326
XZ7550C
XZ50-C
XZTM-40

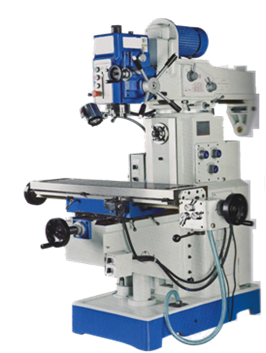

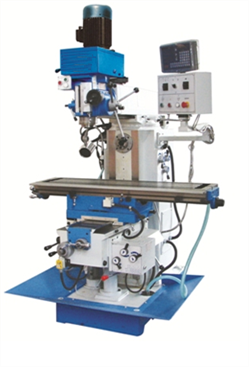

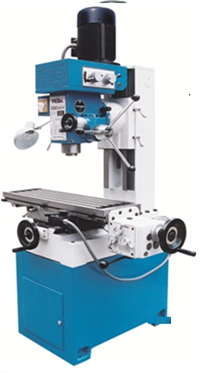

Universal milling cum drilling machine is a versatile drill that can be applied for variety of drilling and milling operations on different materials. This equipment is provided with sturdy machine construction and the components are made of quality material. We provide the following models of universal mill cum drill equipment.
Technical Specifications of Milling Cum Drilling Machine
| Model | XZ6350ZS | XZ6326 | XZ6350G | XZ7550CW | XZ7550C | XZ50C | XZTM-40 |
| Table size | 1270x320mm | 1120x260mm | 1120x260mm | 800x240mm | 800x240mm | 800x240mm | 800x240mm |
| Table travel | 600x290mm | 600X290mm | 600x300mm | 385x200mm | 400x200mm | 400x215mm | 400x215mm |
| Distance from spindle nose to table surface | 120-500mm | 115-430mm | 100-400mm | 60-390mm | 70-420mm | 50-410mm | 100-530mm |
| Max.drilling dia. | 30mm | 50mm | 30mm | 30mm | 30mm | 30mm | 30mm |
| Automatic drilling dia. | 14mm(Cast iron) | 14mm(Cast iron) | |||||
| Max. end milling Dia. | 125mm | 125mm | 100mm | 100mm | 100mm | 100mm | 100mm |
| Max. vertical milling Dia. | 25mm | 25mm | 25mm | 25mm | 25mm | 25mm | 18mm |
| Max. taping dia. | M16 | M16 | M16 | M16 | M16 | M16 | M16 |
| Spindle speed range | 90-2000rpm(Stand V)/ 60-1350rpm(Lie H) |
67-2010rpm(Stand V) | 115-1750rpm(Stand V) /40-1300rpm(Lie H) |
115-1750rpm | 115-1750rpm | 115-1750rpm | 160-3165mm |
| Spindle travel | 120mm | 120mm | 120mm | 120mm | 120mm | 120mm | 120mm |
| Automatic spindle feeds | 0.1 0.15 0.3mm/rev | 0.1 0.15 0.3mm/rev | |||||
| Overall dimension | 1680x1640x2200mm | 1580x1450x2150mm | 1580x1330x2250mm | 1290x1220x2100mm | 1290x1140x2100mm | 1270x950x1800mm | 1140x1100x1500mm |
| Spindle motor power | 2.2kW | 1.5/2.2 2.2kW | 0.85/1.5kW(Stand V) 2.2kW(Lie H) | 0.85/1.5kW | 0.85/1.5kW | 0.85/1.5kW | 1.5kW |
| Machine weight | 1650kg | 1350kg | 1500kg | 970kg | 800kg | 500kg | 410kg |

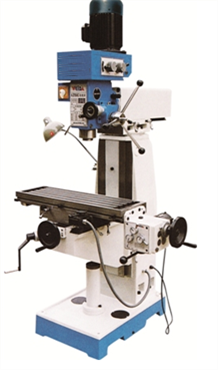

Model XZ6350ZS : Features with 1270x320mm table size and 120-500mm distance from spindle nose to table surface. The maximum drill diameter is 30mm and The automatic diameter is 14mm suitable for cast iron. The spindle speed range is 90-2000rpm (stand V)/60-1350rpm (Lie H).
Model XZ6326 : Featured with 1120x260mm table size and distance from spindle nose to table surface the maximum hole making diameter, end drill diameter, vertical mill and maximum tapping diameter is 30mm, 125mm, 25mm and M16 respectively.
Model XZ6350G : Maximum boring diameter is 30mm, maximum end milling and vertical diameter is 30mm, 125m and 25mm respectively.
Model XZ7550CW : It is featured with 800x240mm table size and the maximum level of boring; end grinding, vertical and tapping capacities are 30mm, 10mm, 25mm and M16 respectively.
Model XZ7550C : Comes with maximum 30mm bore making capacity, 100 end and 25mm capacities and the spindle speed range and spindle travel is similar to that of XZ7550CW.
Model XZ50C : It is featured with 400x200mm table travel capacity and the distance from spindle nose to table surface is 70-420mm. The maximum boring, end, vertical capacities are similar to that of XZ6350G, XZ7550CW, XZ7550C and XZ50C.

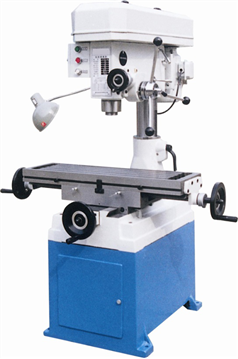

Model XZTM-40 : It is featured with 100-530mm of spindle nose to table surface distance and spindle speed range if 160-3165mm. It is the most compact milling cum drilling machine model whose weight is 410kg that is comparatively lesser than other models.
We provide universal mill cum drill equipment in different sizes and weights to carryout lightweight to heavy duty operations.
Features and Advantages of Milling Cum Drilling Machine
- Featured with high spindle speeds.
- Adaptable workshop tool for performing milling, drilling and tapping as well.
- Available in different models with variable speeds to manage milling and drilling of different materials.
- Rigid machine structure.
- Can be applied for different machining jobs.
- Easy control features.
- Can be tilted in different angles to obtain multiplicity of benefits.
