HYDRAULIC PRESS
Press is special machining equipment generally used to obtain compressive force to shape different types of materials. A hydraulic press works on hydraulic mechanism and the hydraulic cylinder is equipped with the equipment to bring out the compressive force. Yash Machine Tools presents variety of hydraulic press devices designed to support sheet metal machining requirements. These are compact in size and ideal to work with metal sheets of different metals. It helps in converting metals sheets to different shapes with less possibilities of wastage or damages to metal sheets. It is also a better alternative option of bending or shaping sheets of metals than conventional or manual shaping process. There are many features which make our hydraulic press remain versatile among the compact range of sheet metal equipments.
- Rigid weldment design.
- Reliable highly accurate hydraulic system.
- Pressing & clamping.
- Straightening beam, shaft and section
| Item No. | 382101 | 382102 | 382103 | 382105 | 382106 |
| Capacity(ton) | 10 | 12 | 10 | 20 | 30 |
| Height(mm) | 713 | 1283 | 1276 | 1562 | 1710 |
| Width(mm) | 596 | 514.4 | 516.9 | 670 | 760 |
| Working space(mm) | 146-922 | 66.7-990 | 146-922 | 146-922 | 6.4-615 |
| N.W. / G.W.(kg) | 80/95 | 54/56 | 65/67 | 116/131 | 200/225 |
| Item No. | 382107 | 382108 |
| Model | HP20S | HP30S |
| A(mm) | 1600 | 1700 |
| B(mm) | 750 | 750 |
| C(mm) | 750 | 750 |
| D(mm) | 490 | 650 |
| E(mm) | 200 | 250 |
| H(mm) | 700 | 800 |
| Stroke(mm) | 170 | 170 |
| Weight | 175 | 190 |
| Item No. | Model | Capacity (kn) | Pressure (mps) | Piston travel/ Table travel (mm) | Table size (mm) | Dimension (cm) | Hydraulic Station (cm) | N.W./G.W. (kg) |
| 382001 | HP-30 | 300 | 25 | 200+270 | 300×400 | 123x55x160 | – | 420/650 |
| 382002 | HP-50 | 500 | 25 | 220+405 | 400×500 | 150x65x195 | – | 980/1100 |
| 382011 | HP-63 | 630 | 30 | 220+405 | 400×500 | 150x65x195 | – | 1020/1500 |
| 382006 | HP-100 | 1000 | 30 | 250+405 | 460×980 | 182x75x225 | 73x63x96 | 1220/1420 |
| 382012 | HP-150 | 1500 | 30 | 250+405 | 460×980 | 184x75x225 | 73x63x96 | 1350/1750 |
| 382013 | HP-200 | 2000 | 31.5 | 300+405 | 500×1000 | 194x95x235 | 90x80x106 | 2200/2400 |
| 382014 | HP-300 | 3000 | 31.5 | 300+405 | 700×1200 | 210x95x270 | 110x120x135 | 4200/4500 |
| 382015 | HP-400 | 4000 | 31.5 | 300+405 | 800×1200 | 230x100x290 | 110x120x135 | 5500/5850 |
| 382016 | HP-500 | 5000 | 31.5 | 300+405 | 900×1200 | 230x100x290 | 110x120x135 | 6500/6900 |
- With the function of brake
- With adjustable worktable
- Extremely torsion-proof steel weldment
- Reliable, highly accurate hydraulic system
- Hydraulic press include replaceable toptools V-block and support table with stops
- Table can be lifted through a chain driven by the main cylinder
| Item No. | Model | Capacity (kn) | Pressure (mps) | Piston travel/ Table travel(mm) | Table size(mm) | Dimension (cm) | Hydraulic Station (cm) | N.W./G.W. (kg) |
| 382008 | HPB-580 | 300 | 25 | 300+270 | 300×400 | 116x55x160 | – | 650/830 |
| 382003 | HPB-790 | 500 | 25 | 220+405 | 400×800 | 150x65x195 | – | 1100/1280 |
| 382004 | HPB-1010 | 1000 | 30 | 250+405 | 480×980 | 184x75x225 | 73x63x96 | 1380/1590 |
| 382009 | HPB-1500 | 1500 | 30 | 250+405 | 480×980 | 184x75x225 | 73x63x96 | 1750/1980 |
| 382010 | HPB-2000 | 2000 | 30 | 300+405 | 500×1000 | 194x95x235 | 90x80x106 | 2500/2880 |

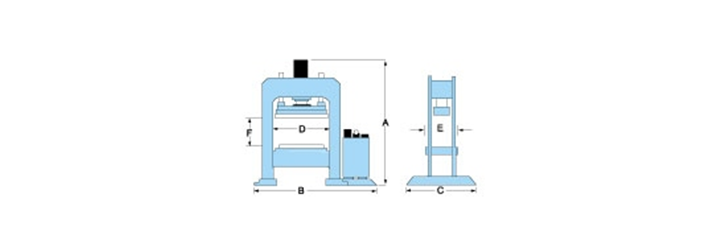

| Model | A | B | C | D | E | F |
| HP-20/HPB-490 | 1400 | 1100 | 450 | 500 | 140 | 490 |
| HP-30/HPB-580 | 1460 | 1100 | 450 | 500 | 160 | 490 |
| HP-50/HPB-790 | 1750 | 1300 | 550 | 800 | 200 | 540 |
| HP-100/HPB-1010 | 1950 | 1550 | 750 | 1000 | 270 | 540 |
| HP-150/HPB-1500 | 2250 | 1600 | 750 | 1000 | 270 | 790 |
| HP-200/HPB-2000 | 2250 | 2100 | 850 | 1000 | 300 | 790 |
| HP-300/HPB-3000 | 2450 | 2450 | 1200 | 1200 | 350 | 600 |
| HP-500/HPB-5000 | 2790 | 2700 | 1200 | 1200 | 400 | 600 |
Special Features of Sheet Metal Hydraulic Press
Our hydraulic presses are compact in size and they have been provided with excellent performing hydraulic mechanism. The operator would be able to experience smooth strokes on work materials which also prevent metal sheets from de-positioning. Yash Machine Tools presents wide range of compact hydraulic presses which are preferably used to work with sheet metals and stay ideal for engineering industries. Each model of hydraulic press is equipped with brake function and exclusive adjustable worktable. The whole equipment is made up of superior quality of components which are tested for torsion-proof capacity as well. We provide press with hydraulic mechanism with work table size starting from 300X400mm to 900X1200mm.
Benefits of Hydraulic Press
- Used for specialized sheet metal work.
- Suitable for constant production applications.
- Converts metal sheets into desired shapes with the help of die.
- It has been designed with excellent bending capacity.
- Best companion for compressing different metals into full extent.
- Works effectively with pressure over smaller diameters.
Apart from general metal sheet machining operations this equipment is also suitable for carrying out variety of smaller range machining operations like,
- Forging.
- Blanking.
- Punching.
- Metal forming, etc.
These are compact in size however, easy and convenient to set inside the workshop premises. This kind of press is suitable for small to moderate workshops but they stay reliable for long term usage. It is cost effective and proves to be one of the resourceful metal machining equipments. When it comes to functionality, it is more user-friendly and requires comparatively less maintenance. We provide standard spare parts and service. As we have different models, it would be easy for different types of industries to choose the one that best fits their overall requirement and at cost effective price. Yash Machine Tools ensures for unblemished performance of our press equipments and other devices as well. Every machine has been designed considering the practical factors which different industries look out for while buying workshop equipment. Visit our website and get to know more details about the range of equipments we supply and order the most suitable equipment at the earliest.
