FOLDING MACHINE
Folding or bending metal sheets to the desired angle includes lot of attention. Though most of the folding in earlier days was done with simple tools and manual support, precision of bending had been a matter of concern as it remained a bit challenging to obtain accuracy in bending without causing damage to the remaining parts of the metal sheet. Yash Machine Tools, a pioneer in designing metal sheet machining components introduces folding machine in extensive models in view of supporting flexible folding operations of metal sheets. Our folding device can be applied over different types of metals and precision is uncompromised.
Yash Machine Tools provides variety of folding machine models each featured with specific functionality and created to match different industrial requirements. The overall machine structure is made of superior quality of materials which make the equipment remain sturdy and reliable for long term production demand. Apart from that, these folding equipments are designed as per global standards and to serve consumers from different parts of the world.

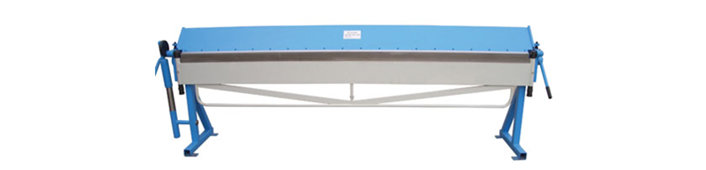

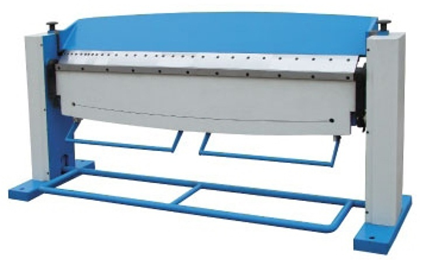

PBB 1250/1A
- 36" effective width
- Max thickness: 12 gauge
- Minimum bend angle: 0°
- Maximum bend angle: 120°
- Included floor stand
- Compact Design
- Special Design for light gauge
- Sheet metal work
Features & Benefits
- Heavy duty all steel construction
- Mount on work bench or use stand (included)
- Easily bends up to 12 gauge sheet metal
- Quickly adjusts for different sheet metal thickness
Technical Datasheet of Folding Machine
| Model | PBB1020/1A | PBB1250/1A | 36" BRAKE | 40" BRAKE | 48" BRAKE | 72" BRAKE | WF1.0 X 2020 | WF1.0 X 2500 | WF1.0 X 3000 |
| Width (mm) | 1020 | 1250 | 915 | 1016 | 1220 | 1830 | 2020 | 2500 | 3000 |
| Thickness (mm) | 1 | 1 | 12 gauge | 12 gauge | 20 gauge | 22 gauge | 1 | 1 | 1 |
| Angle | 0-135° | 0-135° | 0-120° | 0-120° | 0-120° | 0-120° | 0-135° | 0-135° | 0-135° |
| Packing Size (cm) | 135 x 53 x 62 | 162 x 69 x 45 | 130 x 24 x 50 | 134 x 24 x 50 | 153 x 24 x 53 | 217 x 36 x 64 | 245 x 94 x 70 | 307 x 94 x 62 | 358 x 94 x 62 |
| Net Weight | 105kg | 115kg | 62kg | 69kg | 81kg | 145kg | 455kg | 550kg | 640kg |
| Gross Weight | 140kg | 135kg | 74kg | 83kg | 96kg | 180kg | 600kg | 730kg | 840kg |

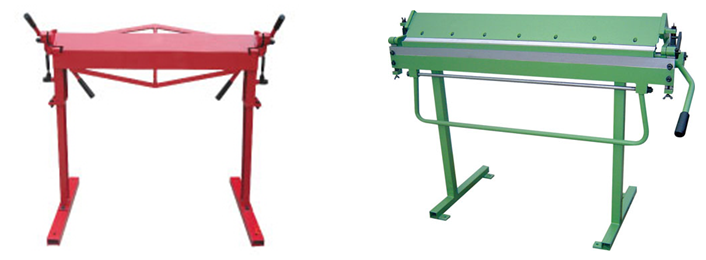

FOLDING MACHINE

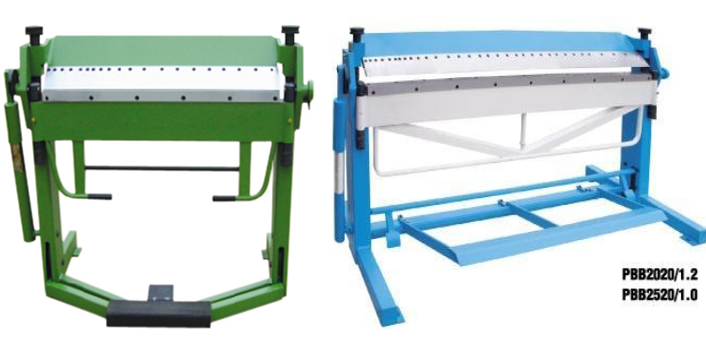

PBB1270/2
PBB2520/1.0
- A fully welded structure, and compact high quality engineering, ensure minimum mainteance, together with simple and safe operation.
- They have the function of air spring which can be installed inside the arm (Optional)
- With foot control, it is easy for operation and relax hands
Technical Specifications of Folding Machine
| Model | PBB1020/2.5 | PBB1270/2 | PBB1520/1.5 | PBB2020/1.2 | PBB2520/1.0 |
| Max. working length (mm) | 1020 | 1270 | 1520 | 2020 | 2520 |
| Max. sheet thickness (mm) | 2.5 | 2 | 1.5 | 1.2 | 1 |
| Max. clamping bar lift (mm) | 47 | 47 | 47 | 47 | 47 |
| Folding angle | 0-135° | 0-135° | 0-135° | 0-135° | 0-135° |
| Packing size (cm) | 146 x 62 x 127 | 170 x 71 x 127 | 196 x 71 x 130 | 247 x 94 x 132 | 297 x 94 x 132 |
| Net Weight | 285kg | 320kg | 385kg | 490kg | 590kg |
| Gross Weight | 320kg | 360kg | 456kg | 640kg | 770kg |

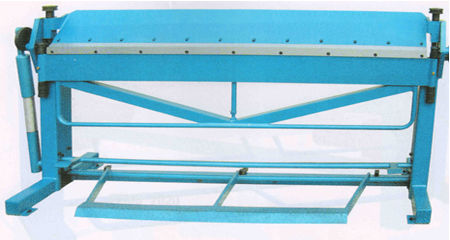

FOLDING MACHINE
- With foot control. It is easy for operation and relax hands for adjusting the material
- They have the funstion of air spring which can be installed inside the arm (Optional)
- The press blade and folding blade are segment structure
- A newly developed quick release system for the clamp beam segment now ensures fast interchengeblility.
- The folding beams are fitted with a counter-balance and angle stop toprovide aperfect and effortless operation within the full capacity of the machine.
- The optional back-gauge can be easily mounted when using the pre-drilled fixing points.
Folding Machine Technical Specifications
| Model | PBB1020/2A | PBB1270/2A | PBB1520/1.5A | PBB1020/3SH | PBB1270/3SH |
| Max. working length (mm) | 1020 | 1270 | 1520 | 1020 | 1270 |
| Max. sheet thickness (mm) | 2 | 2 | 1.5 | 2 | 1.5 |
| Max. clamping bar lift (mm) | 47 | 47 | 47 | 45 | 45 |
| Folding angle | 0-135° | 0-135° | 0-135° | 0-150° | 0-150° |
| Packing size (cm) | 146 x 62 x 127 | 170 x 71 x 127 | 196 x 71 x 130 | 142 x 59 x 142 | 167 x 66 x 142 |
| Net Weight | 320kg | 350kg | 395kg | 430kg | 465kg |
| Gross Weight | 350kg | 385kg | 466kg | 470kg | 510kg |

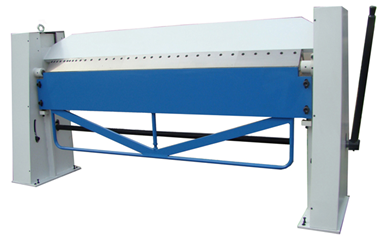

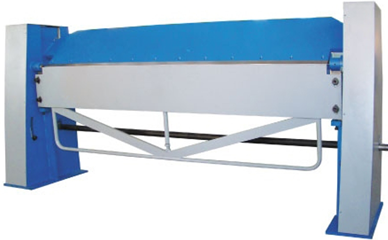

FOLDING MACHINE
- Steel welded design
- Rigid and durable structure
- Segments : 25, 30, 35, 40, 45, 50, 75, 100, 150, 200, 270, 400, 400mm
- Lever for the swivel movement of the bending beam
- Steel welded design
- Rigid and durable structure
- One whole blade
- Lever for the swivel movement of the bending beam
Technical Specifications of Folding Machine
| Model | TSB 2020/2 | TSBS 2020/2 | TSBS 2540/1.5 | TSBS 3020/1.2 |
| Max. working length (mm) | 2020mm | 2020mm | 2540mm | 3020mm |
| Max. sheet thickness (mm) | 2mm | 2mm | 1.5mm | 1.2mm |
| Folding angle | 0-135° | 0-135° | 0-135° | 0-135° |
| Packing size (cm) | 280 x 71 x 150cm | 280 x 71 x 150cm | 337 x 72 x 150cm | 385 x 72 x 150cm |
| Net Weight | 1010kg | 1020kg | 1250kg | 1385kg |
| Gross Weight | 1220kg | 1230kg | 1400kg | 1570kg |

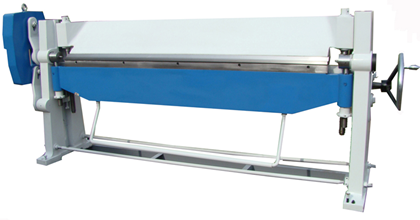

FOLDING MACHINE
- A fully welded structure,, and compact high quality with foot control. It is easy for operation and relax hands
- Cast Iron design
- Ridig and durable structure
- Versatie application
- Use with a hammer, canred uce bending resistance
Folding Machine Technical Specifications
| Model | TSB 2060/2 | TFS 2020/B |
| Max. working length (mm) | 2060mm | 2020mm |
| Max. sheet thickness (mm) | 2mm | 1.2mm |
| Folding angle | 0-135° | 0-135° |
| Packing size (cm) | 310 x 76 x 150cm | 247 x 94 x 132cm |
| Net Weight | 1750kg | 500kg |
| Gross Weight | 1995kg | 650kg |

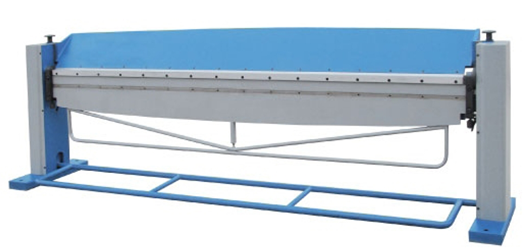

FOLDING MACHINE
- Segments: 25, 30, 35, 40, 45, 50, 75, 100, 150, 220, 250, 500, 500mm
- With foot control. It is easy for operation and relax hands
- One whole blade
- With foot control. It is easy for operation and relax hands
Technical Specifications of Folding Machine
| Model | MFS 2020 | MF 3020 |
| Max. working length (mm) | 2020mm | 3020mm |
| Max. sheet thickness (mm) | 1.5mm | 1mm |
| Folding angle | 0-135° | 0-135° |
| Packing size (cm) | 265 x 83 x 146cm | 365 x 83 x 146cm |
| Net Weight | 860kg | 1300kg |
| Gross Weight | 1070kg | 1550kg |

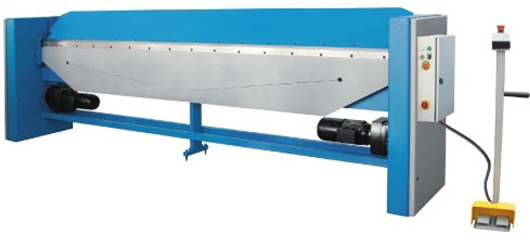

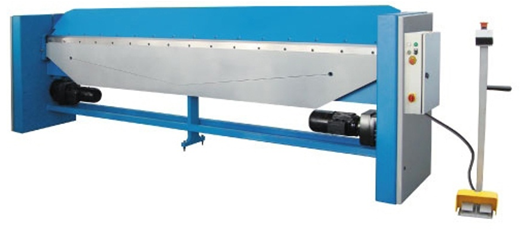

ELECTRIC FOLDING MACHINE
- Segments: 25, 30, 35, 40, 45, 50, 75, 100, 150, 200, 270, 400, 400mm
- With foot pedal for operation and relax hands
- One whole blade
- With foot pedal for operation and relax hands
Electric Folding Machine Technical Specifications
| Model | EFMS 2020 | EFMS 2520 | EFMS 3020 | EFM 2020 | EFM 2520 | EFM 3020 |
| Width | 2020mm | 25020mm | 3020mm | 2020mm | 2520mm | 3020mm |
| Thickness | 1.5mm | 1mm | 1mm | 1.5mm | 1mm | 1mm |
| Angle | 0-135° | 0-135° | 0-135° | 0-135° | 0-135° | 0-135° |
| Opening Height | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm |
Advantages of folding machine
The folding machine helps in the essential fabrication process which can help bend metal sheets at an angle to assume the desired shape. With perfect tooling to change out this machine is quick and easy. While performing accurate processes of bending and hemming can increase potential in the market. The principle behind the folding machine is through compression and tension. Metal sheet folding industries benefit from high productivity and low part costs. The folding machines operation promotes an ergonomic operation and the technique introduced by folding machine manufacturers makes it easier for the operator to bend multiple set up parts.
